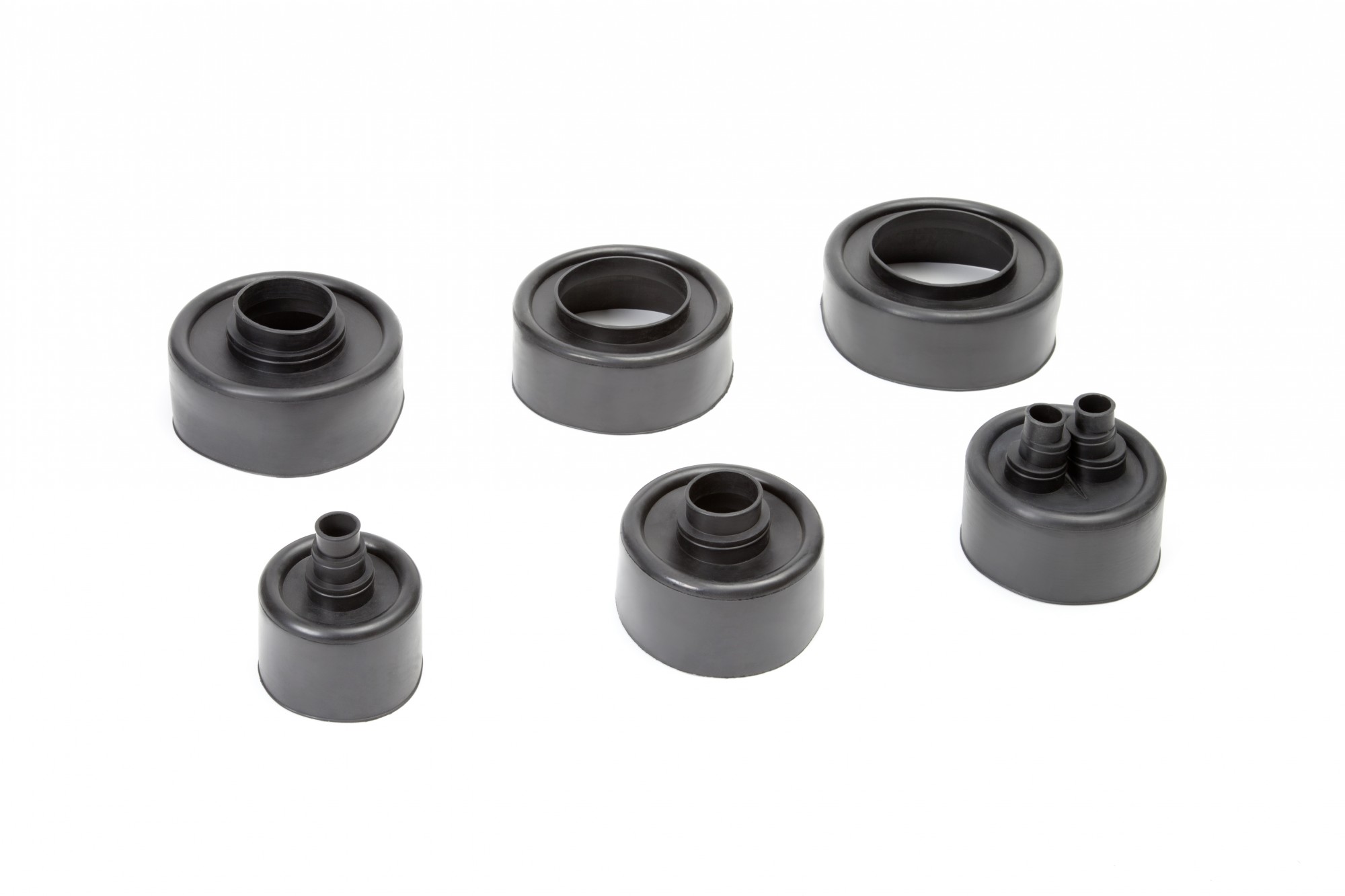

REHAU Rauthermex Rubber End Cap - UNO & DUO Pipe

Description

REHAU RAUTHERMEX Rubber End Caps are designed to seal the exposed insulation at the end of RAUTHERMEX pre-insulated pipe where the carrier pipe exits the outer casing.

Fitted over the prepared pipe end, the rubber end cap forms a close fit around the outer casing and PE-Xa carrier pipework. This helps protect the exposed insulation against moisture, dirt and vermin at building entries and termination points.

Dedicated versions are available for RAUTHERMEX UNO and DUO pipes. Each end cap must be matched to the carrier-pipe size, configuration and outer-casing diameter of the installed pipe.

Key Features

• - Designed for REHAU RAUTHERMEX pre-insulated pipe
• - Protects exposed insulation at pipe termination points
• - Helps prevent the ingress of moisture, dirt and vermin
• - Flexible rubber construction provides a close fit
• - Suitable for use at building entries and indoor terminations
• - Options available for both UNO and DUO pipe configurations
• - Original REHAU system accessory

Available Options

• 91mm: RAUTHERMEX UNO 25mm, 32mm and 40mm pipe
• 111mm: RAUTHERMEX UNO 50mm pipe
• 111mm: RAUTHERMEX DUO 25+25mm and 32+32mm pipe
• 126mm: RAUTHERMEX DUO 40+40mm pipe
• 162mm: RAUTHERMEX DUO 50+50mm pipe

Selecting the Correct End Cap

Select the end cap according to the RAUTHERMEX pipe configuration and carrier-pipe size. UNO end caps have one carrier-pipe opening, while DUO end caps have two openings for the flow and return pipes.

Please note: An end cap should be installed at each exposed end of the pre-insulated pipe. Check the selected option against the pipe specification and follow current REHAU preparation and installation instructions.
