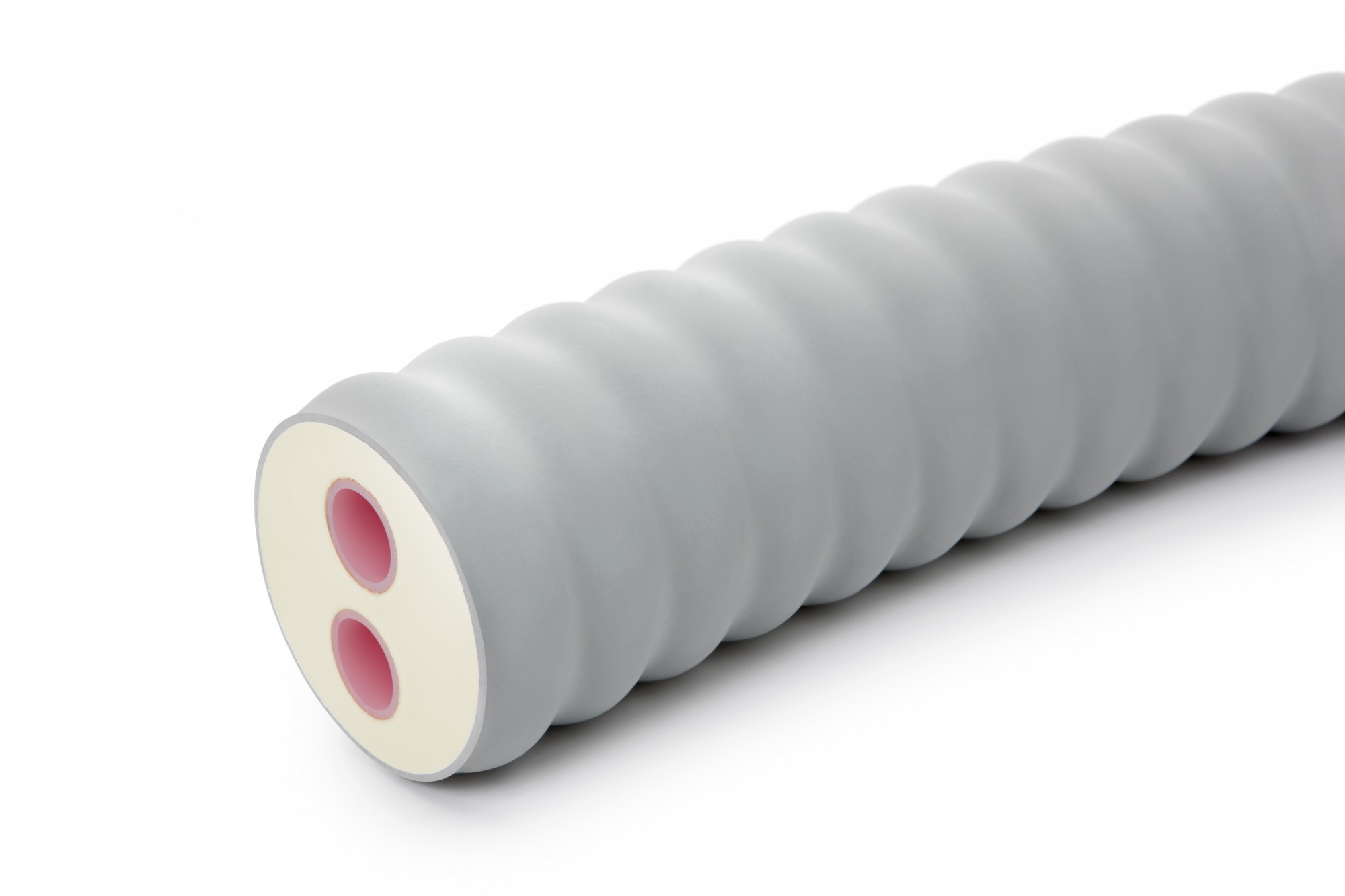

REHAU Rauthermex Duo Pre Insulated Pipe

Description

REHAU RAUTHERMEX DUO is a flexible, pre-insulated PE-Xa pipe designed to carry both flow and return heating water within a single outer casing. It provides an efficient solution for district heating networks, communal heating systems and connections between remote heat sources and buildings.

The two durable PE-Xa carrier pipes are surrounded by high-performance bonded PU foam insulation, helping to minimise heat loss across the network. Housing both pipes within one casing also simplifies installation and reduces the space required compared with installing two separate UNO pipes.

Its flexible construction allows long pipe runs to be installed with fewer underground joints, while the bonded pipe structure means that thermal expansion does not need to be compensated for below ground. RAUTHERMEX DUO is available in carrier-pipe sizes up to 75mm.

Key Features

• - Two PE-Xa carrier pipes for flow and return
• - High-performance bonded PU foam insulation
• - Low thermal conductivity of 0.0199 W/mK
• - Helps minimise heat loss over long pipe runs
• - Flexible construction for easier handling and installation
• - Fewer underground connections required
• - No below-ground thermal-expansion compensation needed
• - Corrosion-resistant PE-Xa carrier pipes
• - Suitable for operating temperatures up to 95°C
• - Available in DUO sizes up to 75+75mm
• - Compatible with REHAU fittings, end caps and jointing accessories

Suitable Applications

• - District and communal heating networks
• - Heat pump connections
• - Biomass boiler installations
• - Remote plant rooms and energy centres
• - Heating connections between buildings
• - Commercial and residential heat networks
•


Ordering RAUTHERMEX DUO Pipe

RAUTHERMEX DUO contains two carrier pipes of the same size. For example, 32+32mm indicates one 32mm flow pipe and one 32mm return pipe within a shared insulated casing.

Select the required carrier-pipe size and pipe length before ordering. Please ensure that compatible REHAU end caps and connection fittings are selected for the chosen pipe size.
