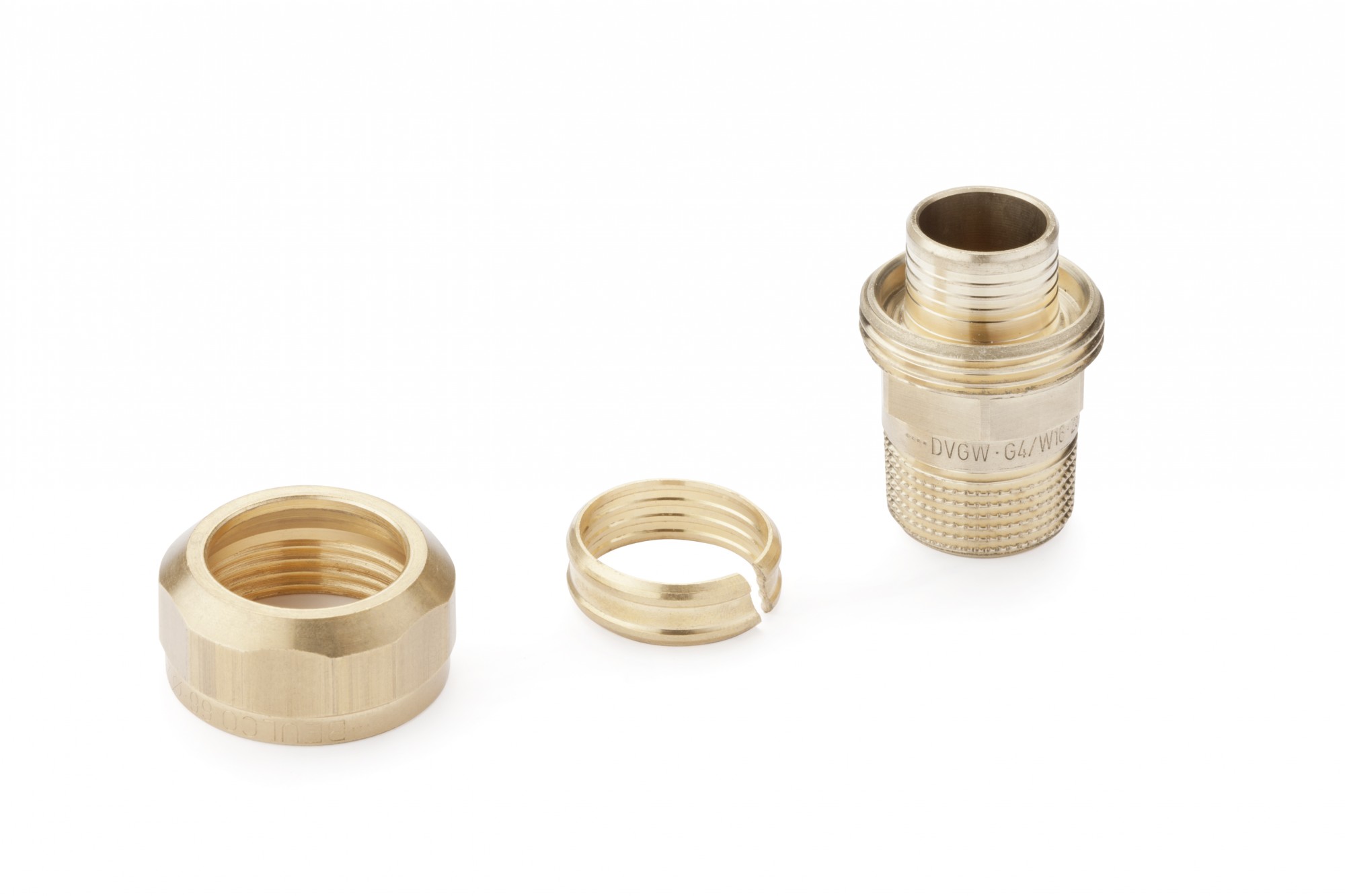

REHAU Male BSP Screw Connection Fittings

Description

REHAU Male BSP Screw Connection Fittings provide a secure transition between compatible REHAU PE-Xa carrier pipe and male BSP threaded system components.

They are suitable for connecting pre-insulated pipework to heat pumps, boilers, valves, manifolds and other heating equipment with a compatible female BSP connection. The fitting size combines the PE-Xa carrier-pipe diameter with the corresponding male BSP thread size.

The detachable threaded connection provides a practical termination at plant and equipment, while the REHAU pipe connection is designed to suit the selected carrier-pipe size. Always confirm compatibility with the specific REHAU pipe range and system specification before installation.

Key Features

• - Connects REHAU PE-Xa carrier pipe to female BSP threaded components
•  Male BSP threaded outlet
• - Suitable for heating and heat pump connections
• - Provides a detachable connection at plant and equipment
• - Available in a range of pipe and thread sizes
• - Original REHAU system accessory
•


Available Connection Sizes

• 25mm x ¾" Male BSP
• 32mm x 1" Male BSP
• 40mm x 1¼" Male BSP
• 50mm x 1½" Male BSP – Everloc compression-ring adaptor

Selecting the Correct Fitting

The first measurement indicates the outside diameter of the REHAU PE-Xa carrier pipe. The second measurement indicates the male BSP thread size. For example, 32mm x 1" connects a compatible 32mm REHAU carrier pipe to a 1-inch female BSP connection.

Please note: Check the fitting against the carrier-pipe size, SDR rating and intended application before ordering. Installation should be completed by a suitably qualified person in accordance with current REHAU technical guidance.
