Uponor Ecoflex Aqua Single & Twin Pre Insulated Pipe
Description

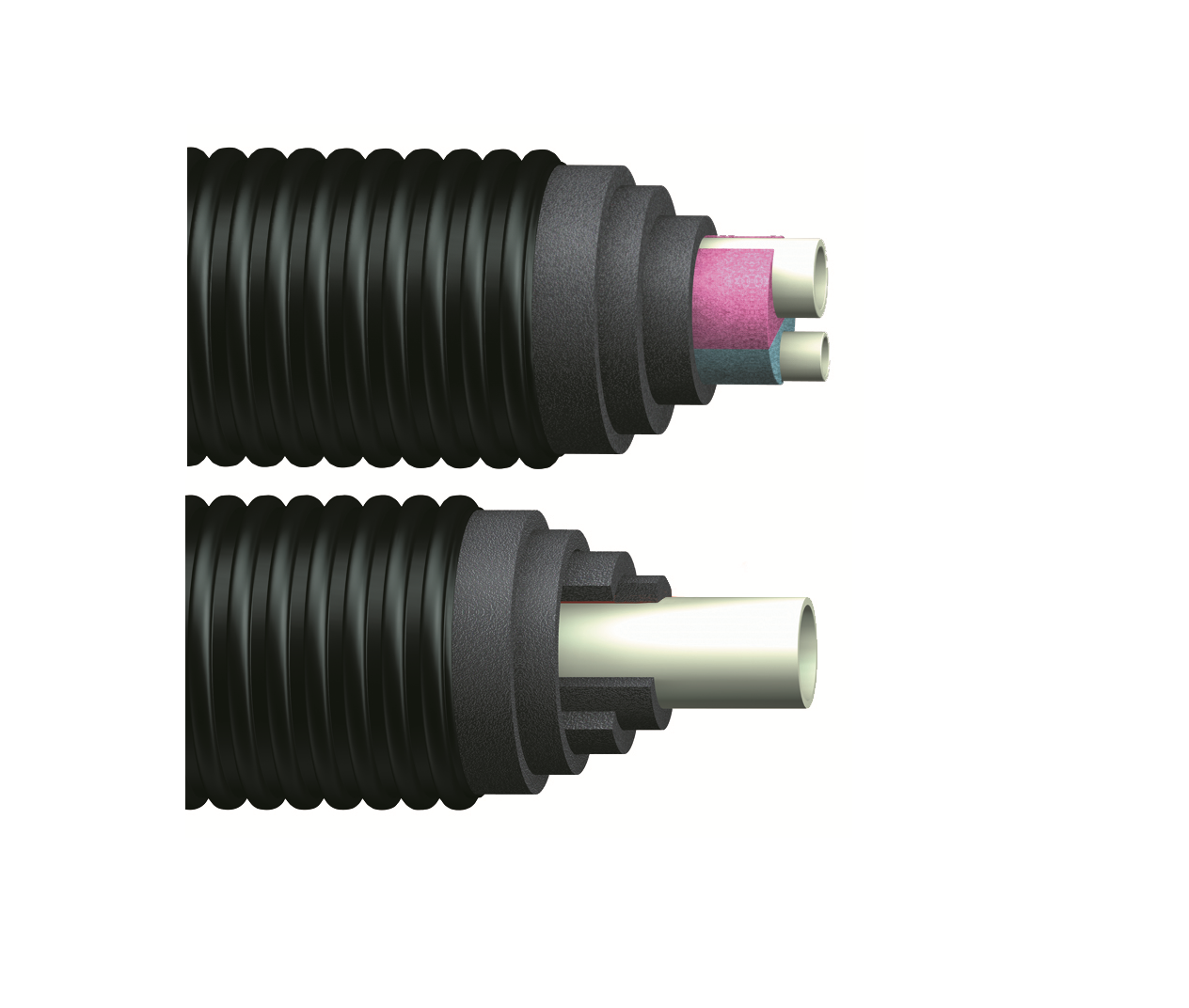

Uponor Ecoflex Aqua Pre Insulated Pipe
Uponor Ecoflex Aqua Pre-Insulated Pipe is a safe and cost-effective solution for laying pipes in warm water installations. It is also suitable for transporting foodstuffs and chemicals. The pipe jacket is made of HDPE and insulated with PE-X foam. With Uponor Ecoflex Aquratwin, the coloured Dog Bone marking prevents any confusion when connecting the medium pipe.
For the recommended installation depths, please see page 39 of the PDF guide below.
Features of Uponor Ecoflex pre-insulated pipe:
- Easy to handle
- Easy to assemble
- Cut-to-length service
- Load bearing of up to 60 tonnes at 0.5 m depth
- Available as Uponor Ecoflex Aqua Single and Uponor Ecoflex Aqua Twin
- Max. 10 bar / 70°C warm water
Use the table below to choose the correct end-caps and couplings for your pipe.
Technical Specifications
Aqua Single
| Pipe Code | Medium pipe da / di / s | DN | Jacket pipe Da [mm] | Bending radius [m] | Insulation thickness [mm] | Weight [kg/m] |
|---|---|---|---|---|---|---|
| 1018117 | 25 / 18.0 / 3.5 | 20 | 140 | 0.35 | 45 | 1.20 |
| 1018118 | 32 / 23.2 / 4.4 | 25 | 140 | 0.40 | 42 | 1.30 |
| 1018119 | 40 / 29.0 / 5.5 | 32 | 175 | 0.45 | 55 | 2.37 |
| 1018120 | 50 / 36.2 / 6.9 | 40 | 175 | 0.55 | 50 | 2.71 |
| 1018121 | 63 / 45.6 / 8.7 | 50 | 175 | 0.65 | 43 | 3.17 |
| Pipe Code | Medium pipe da / di / s | DN | Jacket pipe Da [mm] | Bending radius [m] | Insulation thickness [mm] | Weight [kg/m] |
|---|---|---|---|---|---|---|
| 1018139 | 1) 25 / 18.0 / 3.5 2) 25 / 18.0 / 3.5 | 20 20 | 175 | 0.65 | 43 | 2.22 |
| 1018140 | 1) 32 / 23.2 / 4.4 2) 25 / 18.0 / 3.5 | 25 20 | 175 | 0.70 | 38 | 2.37 |
| 1018141 | 1) 40 / 29.0 / 5.5 2) 25 / 18.0 / 3.5 | 32 20 | 175 | 0.90 | 38 | 2.62 |
| 1018142 | 1) 50 / 36.2 / 6.9 2) 25 / 18.0 / 3.5 | 40 20 | 175 | 1.00 | 28 | 2.90 |
| Pipe Code | Pipe Type & Size | Rubber End-Cap | WIPEX Coupling |
|---|---|---|---|
| 1018117 | Ecoflex Aqua Single 25/140 | 1018315 | 1018336 |
| 1018118 | Ecoflex Aqua Single 32/140 | 1018315 | 1018338 |
| 1018119 | Ecoflex Aqua Single 40/175 | 1018313 | 1018339 |
| 1018120 | Ecoflex Aqua Single 50/175 | 1018313 | 1018340 |
| 1018121 | Ecoflex Aqua Single 63/175 | 1018312 | 1018341 |
| 1018139 | Ecoflex Aqua Twin 25+25/175 | 1018309 | 1018336 |
| 1018140 | Ecoflex Aqua Twin 32+25/175 | 1018309 | 1018338 |
| 1018141 | Ecoflex Aqua Twin 40+25/175 | 1018309 | 1018339 |
| 1018142 | Ecoflex Aqua Twin 50+25/175 | 1018308 | 1018340 / 1018336 |
This product is cut-to-order. Returns for bespoke/made-to or cut-to-order items are not accepted. Please ensure that all lengths and the correct pipe are ordered. Refer to the Uponor Ecoflex Pre-Insulated Pipe technical guide PDF for full details.
