Name: Uponor Ecoflex Thermo Mini & Single Pre Insulated Pipe
Brand: UPONOR
SKU: 1118132
Price: 17.010 GBP
Availability: InStock

Description Technical Specifications Downloads Recommended Products

Description

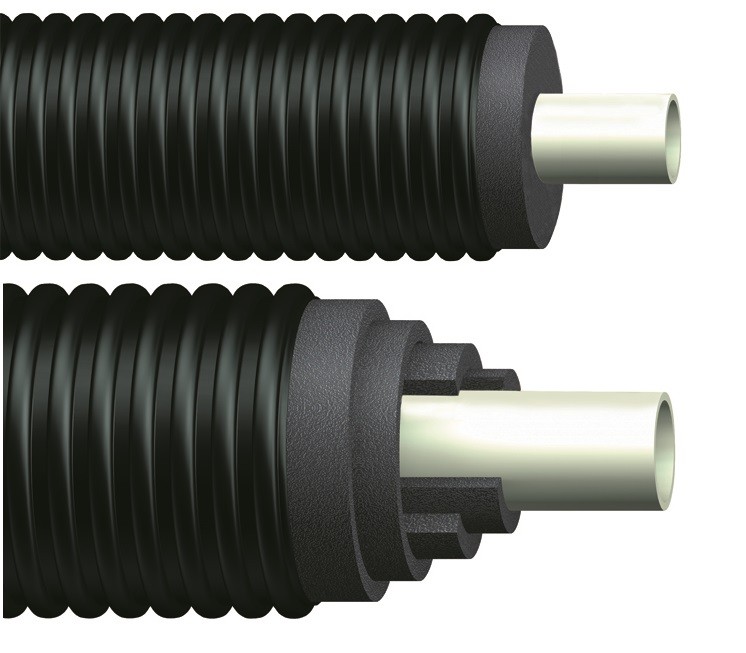

Uponor Ecoflex Thermo Mini & Single Pre Insulated Pipe

Thermo Mini & Single Pre Insulated Pipe is the ideal solution for a wide range of uses from domestic family homes to outbuildings, education and industrial buildings. Its main application is heating water but other applications include wastewater and chemicals. The jacket pipe is made of HDPE with insulated with PE-X Foam. Thermo Mini is the perfect solution for small-scale applications whilst Thermo Twin is the tried-and-tested solution for heating water distribution tie-ins.

For the recommended depths to lay the pipe please see page 39 of the PDF guide below.

Features of Uponor Ecoflex pre-insulated pipe:

- Easy to handle

- Easy to assemble

- Cut to length service

- Load bearing of up to 60 tonnes at 0.5m depth

- Max. 6 bar / 95°C heating

- Available as Uponor Ecoflex Thermo Single and Uponor Ecoflex Thermo Twin

- Max. 10 bar / 70°C warm water

Pipe Type & Size	Pipe	Rubber End-Cap	WIPEX Coupling
Ecoflex Thermo Mini 25/68	Uponor 1018132	Uponor 1018316	Uponor 1018328
Ecoflex Thermo Mini 32/68	Uponor 1018133	Uponor 1018316	Uponor 1018329
Ecoflex Thermo Single 25/140	Uponor 1018109	Uponor 1018315	Uponor 1018328
Ecoflex Thermo Single 32/140	Uponor 1018110	Uponor 1018315	Uponor 1018329
Ecoflex Thermo Single 40/175	Uponor 1018111	Uponor 1018313	Uponor 1018330
Ecoflex Thermo Single 50/175	Uponor 1018112	Uponor 1018313	Uponor 1018331
Ecoflex Thermo Single 63/175	Uponor 1018113	Uponor 1018312	Uponor 1018332
Ecoflex Thermo Single 75/200	Uponor 1018114	Uponor 1018310	Uponor 1018333
Ecoflex Thermo Single 90/200	Uponor 1018115	Uponor 1018310	Uponor 1018334
Ecoflex Thermo Single 110/200	Uponor 1018116	Uponor 1018310	Uponor 1018335

This product is cut-to-order. Returns for any bespoke/made to or cut to order are not accepted. Please ensure that all lengths and the correct pipe are ordered. Please refer to the Uponor Ecoflex Pre-Insulated Pipe technical guide PDF for full details. Orders of less than 10 meters will attract a £60 shipping fee.

Technical Specifications

Thermo Mini

Pipe Code	Medium pipe da / di / s	DN	Jacket pipe Da [mm]	Bending radius [m]	Insulation thickness [mm]	Weight [kg/m]
1018132	25 / 20.4 / 2.3	20	68	0.20	15	0.50
1018133	32 / 26.2 / 2.9	25	68	0.25	12	0.55

Thermo Single

Pipe Code	Medium pipe da / di / s	DN	Jacket pipe Da [mm]	Bending radius [m]	Insulation thickness [mm]	Weight [kg/m]
1018109	25 / 20.4 / 2.3	20	140	0.25	45	1.10
1018110	32 / 26.2 / 2.9	25	140	0.30	42	1.20
1018111	40 / 32.6 / 3.7	32	175	0.35	55	2.20
1018112	50 / 40.8 / 4.6	40	175	0.45	50	2.43
1018113	63 / 51.4 / 5.8	50	175	0.55	43	2.73
1018114	75 / 61.4 / 6.8	65	200	0.80	49	3.74
1018115	90 / 73.6 / 8.2	80	200	1.10	39	4.20
1018116	110 / 90.0 / 10.0	100	200	1.20	30	5.24
