Uponor Ecoflex Quattro Pre Insulated Pipe

Free Delivery from DPD Split your payments into 3

Description

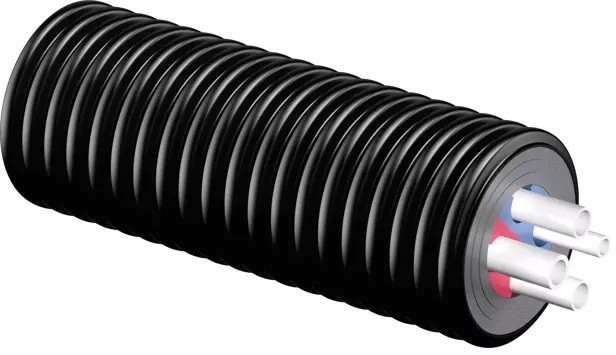

Uponor Ecoflex Quattro Pre-insulated Pipe

Uponor Ecoflex  Quattro pipe PEX for heating / warm water. The ideal solution for a wide range of uses for domestic family homes to outbuildings, education and industrial buildings. With a lightweight and flexible design, no special tools are required and up to 200m of pipe can be used joint free.

Uponor Ecoflex pre-insulated pipe is suitable for heating and cooling water plus for use with industrial fluids. For the recommended depths to lay the pipe please see page 39 of the PDF guide below

Features of Uponor Ecoflex pre-insulated pipe:

 - Easy to handle
 - Easy to assemble
 - Cut to length service
 - Load bearing of up to 60 tonnes at 0.5m depth
- Contains 2 x Thermo Pipes and 2 x Aqua Pipes

Pipe Type & SizeCodeRubber End-Cap

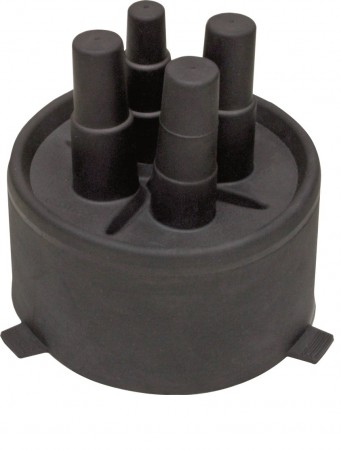

WIPEX Coupling

Ecoflex Quattro 2x25/25+25/175

Uponor 1018147

Uponor 1018306

Uponor 1018328 -1018336

Ecoflex Quattro 2x32/25+25/175

Uponor 1018148

Uponor 1018306

Uponor  1018329 - 1018336

Ecoflex Quattro 2x32/32+25/175

Uponor 1018149

Uponor 1018306

Uponor 1018329 -  - 1018338 - 1018336


This product is cut-to-order. Returns for any bespoke/made to or cut to order are not accepted. Please ensure that all lengths and the correct pipe are ordered. Please refer to the Uponor Ecoflex Pre-Insulated Pipe technical guide PDF for full details. Orders of less than 10 meters will attract a £60 shipping fee.

Technical Specifications

Pipe Code
Medium pipe
da / di / s
DN
Jacket pipe
Da
[mm]
Bending
radius
[m]
Insulation
thickness
[mm]
Weight
[kg/m]
1018147
2x 25 / 20.4 / 2.3
2x 25 / 18.0 / 3.5
2x20
2x20
175
0.80
35
2.40
1018148
2x 32 / 26.2 / 2.9
2x 25 / 18.0 / 3.5
2x25
2x20
175
0.80
35
2.60
1018149
2x 32 / 26.2 / 2.9
32 / 23.2 / 4.4
25 / 18.0 / 3.5
2x25
1x25
1x20
175
0.80
34
2.70
