Name: Uponor Comfort 140w E Foil Underfloor Mat
Brand: UPONOR
SKU: 1088692
Price: 231.000 GBP
Availability: InStock

Description Technical Specifications Downloads Recommended Products

Description

Uponor Comfort E Foil Mat 140w Per M2 Electric Underfloor Heating

The easy install option for new builds and renovation, Uponor Comfort E Aluminium Foil works perfectly with laminate, parquet and vinyl floor coverings making it the ideal solution for bathrooms, kitchens and en-suites.

Not sure what you need to suit your project Try out the new Uponor Comfort E design tool. Put in your dimensions, furnishings and the design tool will tell you what you need.

Features of Uponor Comfort E Aluminium Foil:

- Fits for laminate, parquet or vinyl floor covering – without any special tools needed on-site
- Less than 2 mm in thickness
- Ensures optimal heat distribution
- Saves energy and reduces step sound with insulation boards from Uponor underneath
- CE Approved
Uponor Comfort E electric underfloor heating is the perfect way to bring warmth and comfort to any home.

Nominal voltage	230 V, AC
Rated capacity	140 W/m2
Circuit breaker1) with C-Characteristics	Max. 16 A
Min. bending radius	30 mm
Min. installation distance	60 mm
Max. operating temperature	+90 °C
Min. installation temperature	+5 °C
Lenght of the connection cable	4,0 m
Conductor cross section of the connection cable	3 x 0,75 mm2

Installers can earn double loyalty points (uPoints) when they purchase aluminium and cable mats. These points can be used towards gifts and rewards such as IPAD’s and speakers. Visit the Uponor rewards website for more details >>https://www.uponor-more.com/uk

Technical Specifications

Type	Code	Laying Area	Mat Length	Capacity	Resistance
UPONOR COMFORT E AL-FOIL MAT 140-1	Uponor 1088684	1	2	140	378
UPONOR COMFORT E AL-FOIL MAT 140-2	Uponor 1088685	2	4	280	189
UPONOR COMFORT E AL-FOIL MAT 140-3	Uponor 1088686	3	6	420	126
UPONOR COMFORT E AL-FOIL MAT 140-4	Uponor 1088687	4	8	560	94
UPONOR COMFORT E AL-FOIL MAT 140-5	Uponor 1088688	5	10	700	76
UPONOR COMFORT E AL-FOIL MAT 140-6	Uponor 1088689	6	12	840	63
UPONOR COMFORT E AL-FOIL MAT 140-7	Uponor 1088690	7	14	980	54
UPONOR COMFORT E AL-FOIL MAT 140-8	Uponor 1088691	8	16	1120	47
UPONOR COMFORT E AL-FOIL MAT 140-9	Uponor 1088692	9	18	1260	42
UPONOR COMFORT E CABLE MAT 160-10	Uponor 1088693	10	20	1400	38

Downloads

Thermostat

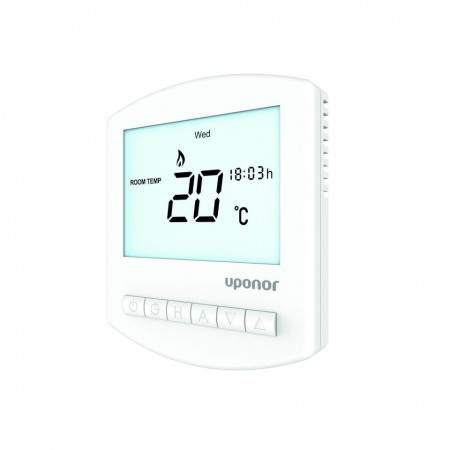

Uponor 1088819 T-86 Digital Programmable Thermostat
