Single Room Underfloor Heating Control Pack

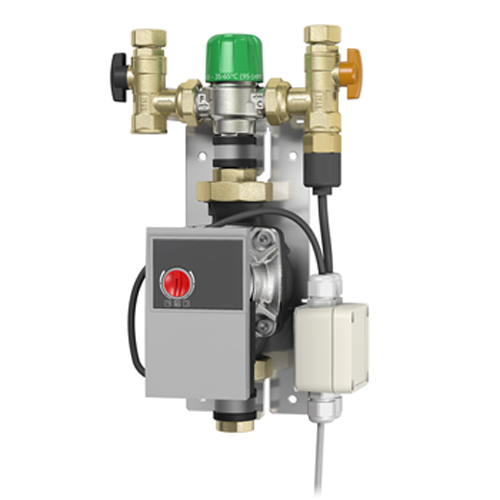

Image 1 of Single Room Underfloor Heating  Control Pack
Description

Single Room Underfloor Heating Control Pack

A modular control pack for underfloor heating systems. Designed to be lightweight and compact in order to connect directly onto pipework without the need for extra brackets or support.
The control pack consists of a mixing valve, circulating pump, isolating valves, flow and return connections and fixing kit.
Ideal for small areas like kitchens, bathrooms and conservatories

Product Features & Benefits

  • Easy set up within the adjustable range of 35°C to 65°C
  • Controls flow temperature to +/- 2°C even with changing boiler flow and return temperatures
  • An integrated unit to automatically control underfloor heating temperatures in small areas
  • Includes an integrated thermostat for on/off control
  • Includes isolating valves as standard Pack includes a Wilo 'A' Rated pump.<

Technical Specifications

*Connections on to this blending kit are 15mm copper compression

 *Requires 2 x eurocone connectors to adapt the pipe to this blending kit
