Name: Uponor Comfort 160w E Cable Underfloor Mat
Brand: UPONOR
SKU: 1188656
Price: 37.650 GBP
Availability: InStock

Description Technical Specifications Downloads

Description

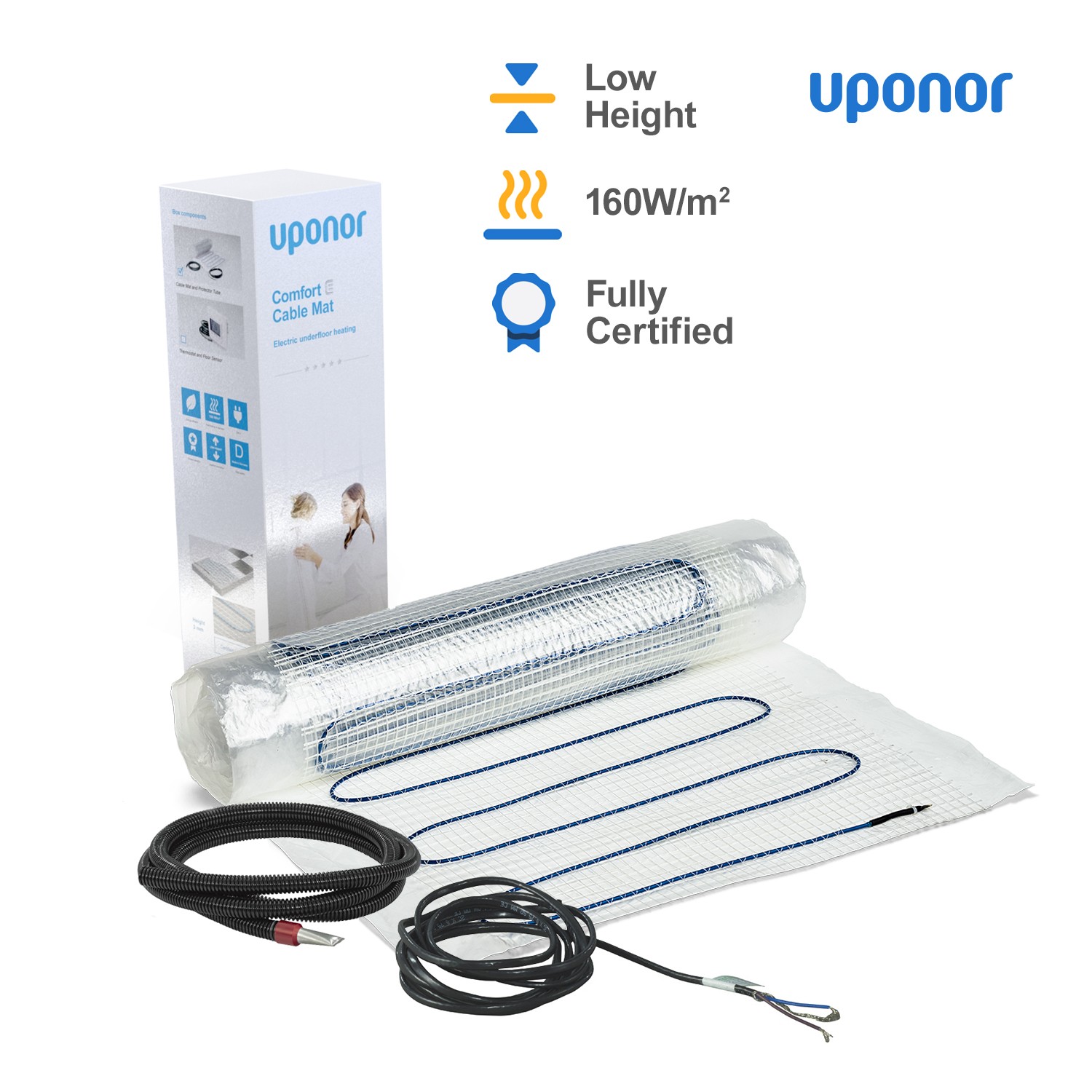

Uponor Comfort E Cable Mat 160w Per M² Electric Underfloor Heating

With Uponor Comfort E you have an electric underfloor heating system that not only heats up in minutes, not only works with a range of floor coverings but is easy to install and comes with the flattest sew-up cable mat on the market.

Not sure what you need to suit your project Try out the new Uponor Comfort E design tool. Put in your dimensions, furnishings and the design tool will tell you what you need.

Advantages of Uponor Comfort E

- The flattest sew-up cable mat with cable of only 3 mm thickness
- Fits perfectly under tiles
- Self-attaching mat fixation on the backside for fast and easy installation
- Secure bond of the mat, no lifting up

Uponor Comfort E electric underfloor heating is the perfect way to bring warmth and comfort to any home.

Nominal voltage	230 V, AC
Rated capacity	160 W/m2
Circuit breaker1) with C-Characteristics	Max. 16 A
Min. bending radius	30 mm
Min. installation distance	60 mm
Max. operating temperature	+90 °C
Min. installation temperature	+5 °C
Lenght of the connection cable	4,0 m
Conductor cross section of the connection cable	3 x 0,75 mm2

Technical Specifications

Type	Code	Laying Area	Mat Length	Capacity	Resistance
UPONOR COMFORT E CABLE MAT 160-1	Uponor 1088656	1	2	160	329
UPONOR COMFORT E CABLE MAT 160-1,5	Uponor 1088657	1.5	3	240	224
UPONOR COMFORT E CABLE MAT 160-2	Uponor 1088658	2	4	320	171
UPONOR COMFORT E CABLE MAT 160-2,5	Uponor 1088659	2.5	5	400	132
UPONOR COMFORT E CABLE MAT 160-3	Uponor 1088660	3	6	480	107
UPONOR COMFORT E CABLE MAT 160-4	Uponor 1088661	4	8	640	85
UPONOR COMFORT E CABLE MAT 160-5	Uponor 1088662	5	10	800	69
UPONOR COMFORT E CABLE MAT 160-6	Uponor 1088663	6	12	960	55
UPONOR COMFORT E CABLE MAT 160-7	Uponor 1088664	7	14	1120	48
UPONOR COMFORT E CABLE MAT 160-8	Uponor 1088665	8	16	1280	42
UPONOR COMFORT E CABLE MAT 160-10	Uponor 1088666	10	20	1600	33
UPONOR COMFORT E CABLE MAT 160-12	Uponor 1088667	12	24	1920	28

Uponor Comfort 160w E Cable Underfloor Mat

Description

Uponor Comfort E Cable Mat 160w Per M2 Electric Underfloor Heating

Advantages of Uponor Comfort E

- The flattest sew-up cable mat with cable of only 3 mm thickness - Fits perfectly under tiles - Self-attaching mat fixation on the backside for fast and easy installation - Secure bond of the mat, no lifting up

Technical Specifications

Downloads

Uponor Comfort E Cable Mat 160w Per M² Electric Underfloor Heating

- The flattest sew-up cable mat with cable of only 3 mm thickness
- Fits perfectly under tiles
- Self-attaching mat fixation on the backside for fast and easy installation
- Secure bond of the mat, no lifting up
