Uponor Ecoflex Pro Insulated Pipe

Description Technical Specifications Downloads Recommended Products

Description

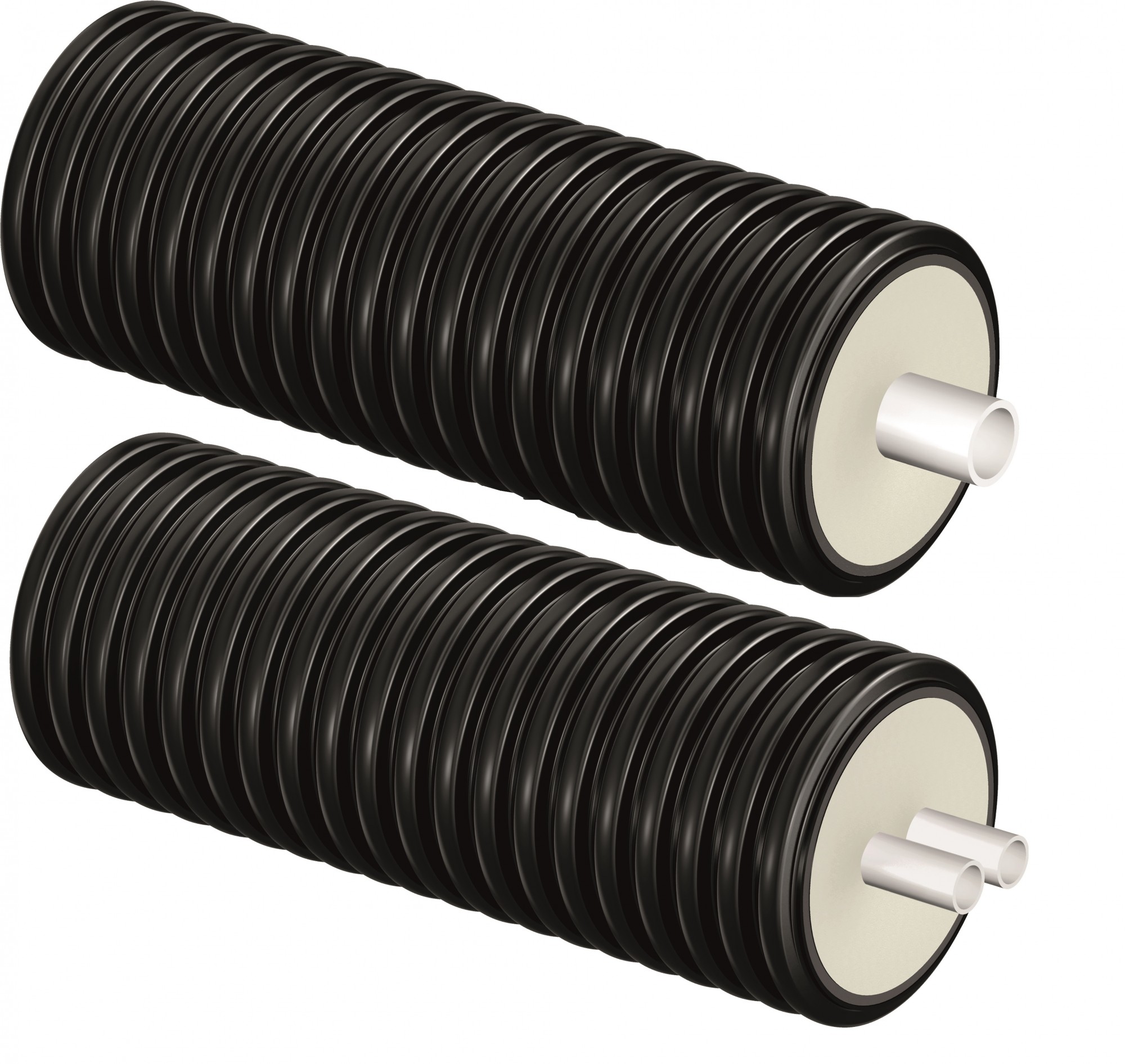

Uponor Ecoflex Thermo Pro Single and Thermo Pro Twin Insulated Pipe

Thermo Pro Single and Thermo Pro Twin is suitable for applications where heat loss needs to be at a minimum, but with all the benefits of the existing Thermo system. Uponor Ecoflex pipe is the ideal solution for a wide range of products from domestic family homes to outbuildings, education, and industrial buildings. With a lightweight and flexible design no special tools are required and up to 200m of pipe can be used joint free.

Uponor Ecoflex pre-insulated pipe is suitable for heating and cooling water plus for use with industrial fluids.

Features of Uponor Ecoflex pre-insulated pipe:

- Easy to handle

- Easy to assemble

- Cut to length service

- Load bearing of up to 60 tonnes at 0.5m depth

- Available as Uponor Ecoflex Thermo Pro Single and Thermo Pro Twin

Use the table to choose the correct end-caps and couplings for the pipe.

Pipe Type & Size	Code	Rubber End-Cap	WIPEX Coupling
Ecoflex Thermo Pro Single 40/175	Uponor 1087379	Uponor 1018313	Uponor 1018330
Ecoflex Thermo Pro Single 50/175	Uponor 1087384	Uponor 1018313	Uponor 1018331
Ecoflex Thermo Pro Single 63/200	Uponor 1087386	Uponor 1086685	Uponor 1018332
Ecoflex Thermo Pro Single 75/200	Uponor 1087388	Uponor 1018310	Uponor 1018333
Ecoflex Thermo Pro Single 90/200	Uponor 1087389	Uponor 1018310	Uponor 1018334
Ecoflex Thermo Pro Single 110/200	Uponor 1087390	Uponor 1018310	Uponor 1018335
Ecoflex Thermo Pro Twin 2x25/175	Uponor 1087393	Uponor 1018309	Uponor 1018328
Ecoflex Thermo Pro Twin 2x32/175	Uponor 1087395	Uponor 1018309	Uponor 1018329
Ecoflex Thermo Pro Twin 2x40/200	Uponor 1087397	Uponor 1018309	Uponor 1018330
Ecoflex Thermo Pro Twin 2x50/200	Uponor 1087398	Uponor 1018307	Uponor 1018331
Ecoflex Thermo Pro Twin 2x63/200	Uponor 1087399	Uponor 1018307	Uponor 1018332

This product is cut-to-order. Returns for any bespoke/made to or cut to order are not accepted. Please ensure that all lengths and the correct pipe are ordered. Please refer to the Uponor Ecoflex Pre-Insulated Pipe technical guide PDF for full details. Orders of less than 10 meters will attract a £60 shipping fee.

Technical Specifications

Thermo Pro Single

Pipe Code	Medium pipe da / di / s	DN	Jacket pipe Da [mm]	Bending radius [m]	Insulation thickness [mm]	Weight [kg/m]
1087378	40 x 3.7	32	145	0.50	42	1.99
1087379	40 x 3.7	32	175	0.70	53	3.07
1087383	50 x 4.6	40	145	0.60	37	2.27
1087384	50 x 4.6	40	175	0.70	50	2.96
1087385	63 x 5.8	50	175	0.70	43	3.26
1087386	63 x 5.8	50	200	0.80	53	3.84
1087387	75 x 6.8	65	175	0.80	57	3.60
1087388	75 x 6.8	65	200	0.90	47	4.18
1087389	90 x 8.2	80	200	1.10	39	4.70
1087390	110 x 10.0	100	200	1.20	29	5.51

Thermo Pro Twin

Pipe Code	Medium pipe da / di / s	DN	Jacket pipe Da [mm]	Bending radius [m]	Insulation thickness [mm]	Weight [kg/m]
1087392	25 x 2.3	20 + 20	145	0.60	32	1.97
1087393	25 x 2.3	20 + 20	175	0.70	45	2.70
1087394	32 x 2.9	25 + 25	145	0.60	25	2.15
1087395	32 x 2.9	25 + 25	175	0.80	38	2.87
1087396	40 x 3.7	32 + 32	175	0.80	30	3.13
1087397	40 x 3.7	32 + 32	200	1.00	37	3.70
1087398	50 x 4.6	40 + 40	200	1.10	34	4.08
1087399	63 x 5.8	50 + 50	200	1.20	16	4.69
