Heatmiser TM1 230v (Time Clock)

Description Technical Specifications Downloads

Description

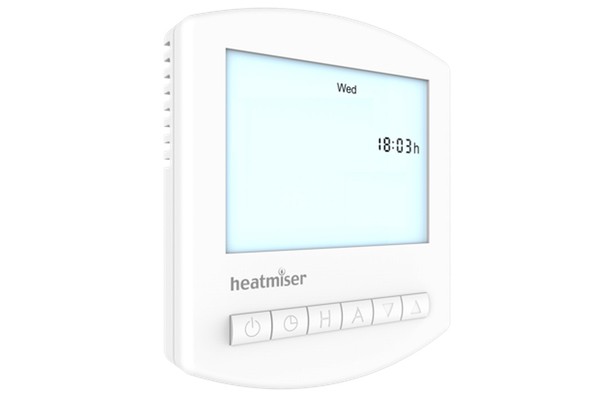

Heatmiser TM1 V3 - 230v Single Channel TimeClock

The Heatmiser TM1 is our 230v time clock, compatible with our 230v UH8 wiring centre or as a standalone time clock.

The Heatmiser TimeClock (TM1) offers three modes in-one, selectable by the installer.

Mode 1 is Countdown Timer - Mode 2 is 5/2 Day Time Clock - Mode 3 is 7 Day Time Clock

5/2 Day Time Clock: In this mode, the user can program 4 switching times for the week and 4 different switching times for the weekend.

Countdown Timer: In this mode, the user can select the number of hours required by using the up and down key. At the end of this time, the output is disabled. The installer can program a maximum countdown time to restrict excess use..

7 Day Time Clock: In this mode, the user can program 4 switching times for each day of the week.

Technical Specifications

2 Heating Zone Control	No	Key Lock Function	Yes
Temperature Range	05-35C	Temperature Hold	Yes
Flexible Programming	Yes	Network Facility	Yes
No. Heating Levels	4	Remote Air Sensor Function	No
No. Hot Water Levels	4	Floor Sensor Mode	No
Optimum Start	Yes	Floor Sensor Inc.	No
Holiday Function	Yes	Max Current	3A
Supply	12v	Dimensions (L,H,D)	100x110x16.5mm
