Uponor Ecoflex Thermo Twin Pre Insulated Pipe

Description

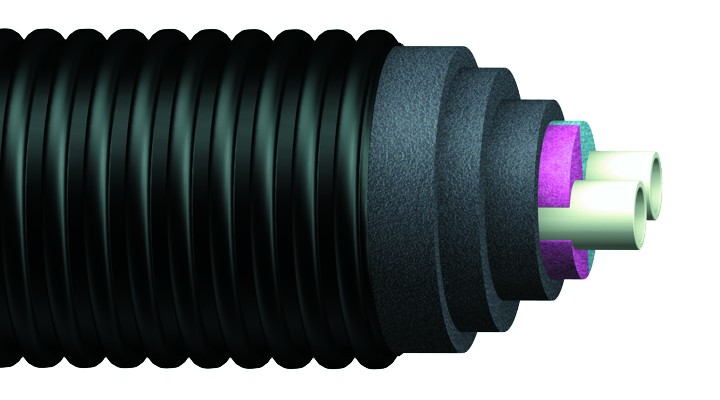

Uponor Ecoflex Thermo Twin Pre Insulated Pipe

Uponor Ecoflex pipe is the ideal solution for a wide range of products from domestic family homes to outbuildings, education and industrial buildings. With a lightweight and flexible design, no special tools are required and up to 200m of pipe can be used joint free.

Uponor Ecoflex pre-insulated pipe is suitable for heating and cooling water plus for use with industrial fluids. For the recommended depths to lay the pipe please see page 39 of the PDF guide below

Features of Uponor Ecoflex pre-insulated pipe:

 - Easy to handle
 - Easy to assemble
 - Cut to length service
 - Load bearing of up to 60 tonnes at 0.5m depth
- max. 6 bar / 80°C heating

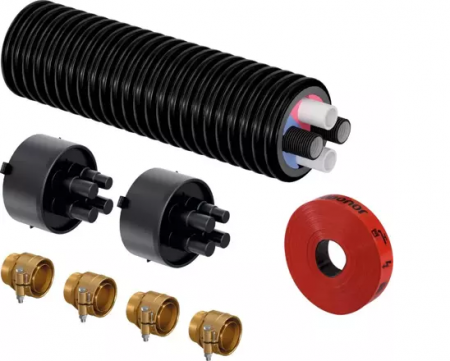

Pipe Type & SizeCode

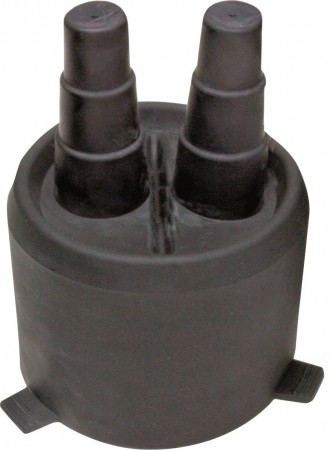

Rubber End-Cap
WIPEX Coupling

Ecoflex Thermo Twin 2x25/175

Uponor 1018134

Uponor 1018309

Uponor 1018328

Ecoflex Thermo Twin 2x32/175

Uponor 1018135

Uponor 1018309

Uponor 1018329

Ecoflex Thermo Twin 2x40/175

Uponor 1018136

Uponor 1018309

Uponor 1018330

Ecoflex Thermo Twin 2x50/200

Uponor 1018137

Uponor 1018307

Uponor 1018331

Ecoflex Thermo Twin 2x63/200

Uponor 1018138

Uponor 1018307

Uponor 1018332

This product is cut-to-order. Returns for any bespoke/made to or cut to order are not accepted. Please ensure that all lengths and the correct pipe are ordered. Please refer to the Uponor Ecoflex Pre-Insulated Pipe technical guide PDF for full details.

Technical Specifications


Pipe Code
Medium pipe
da / di / s
DN
Jacket pipe
Da
[mm]
Bending
radius
[m]
Insulation
thickness
[mm]
Weight
[kg/m]
1018134
(2x) 25 / 20.4 / 2.3
2x20
175
0.5
43
2.09
1018135
(2x) 32 / 26.2 / 2.9
2x25
175
0.6
38
2.16
1018136
(2x) 40 / 32.6 / 3.7
2x32
175
0.8
28
2.50
1018137
(2x) 50 / 40.8 / 4.6
2x40
200
1.0
32
3.59
1018138
(2x) 63 / 51.4 / 5.8
2x50
2001.2
18
4.49
1088276
(2x) 75 / 61.4 / 6.8
2x65
250
1.4
27
6.43
