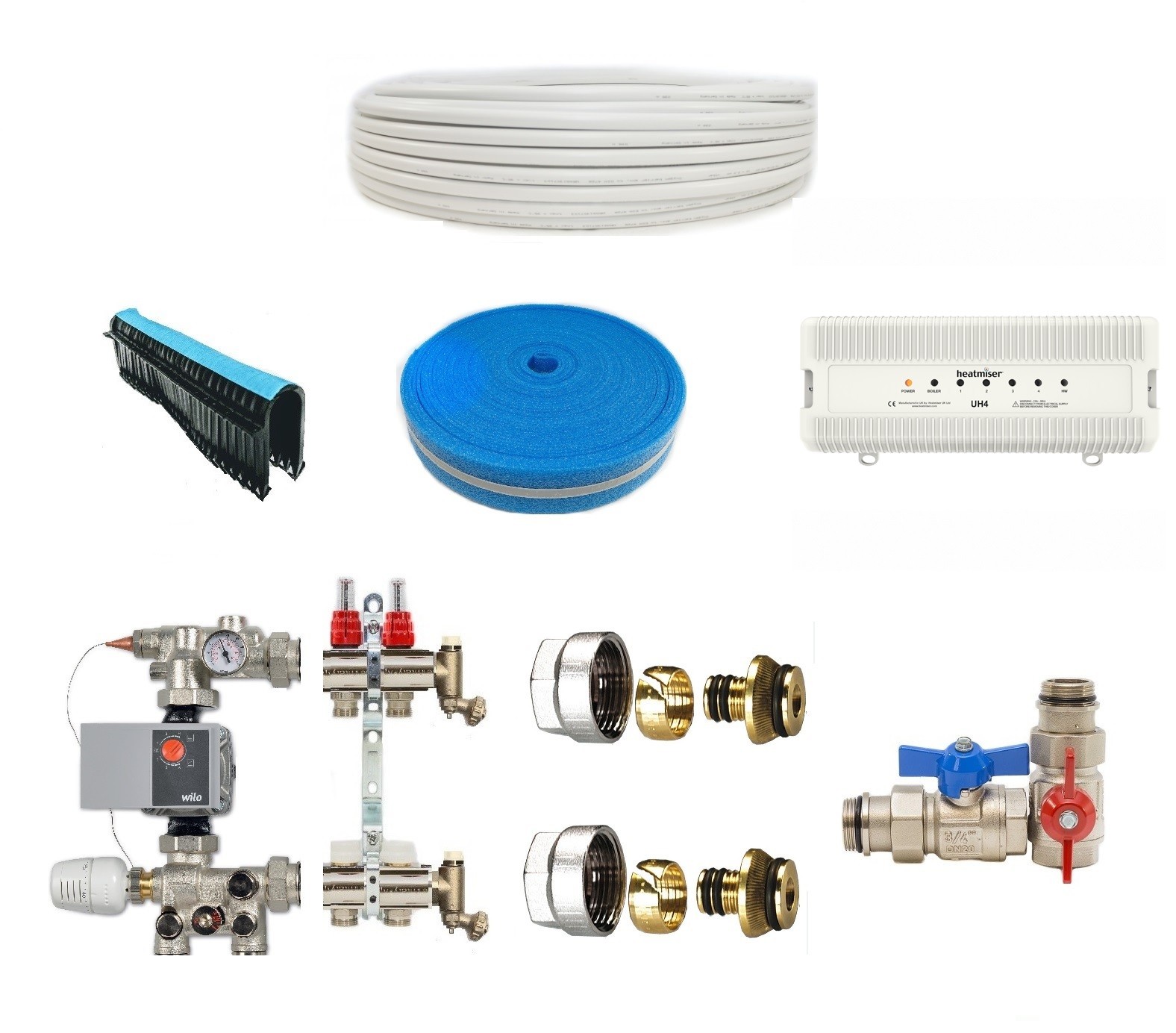

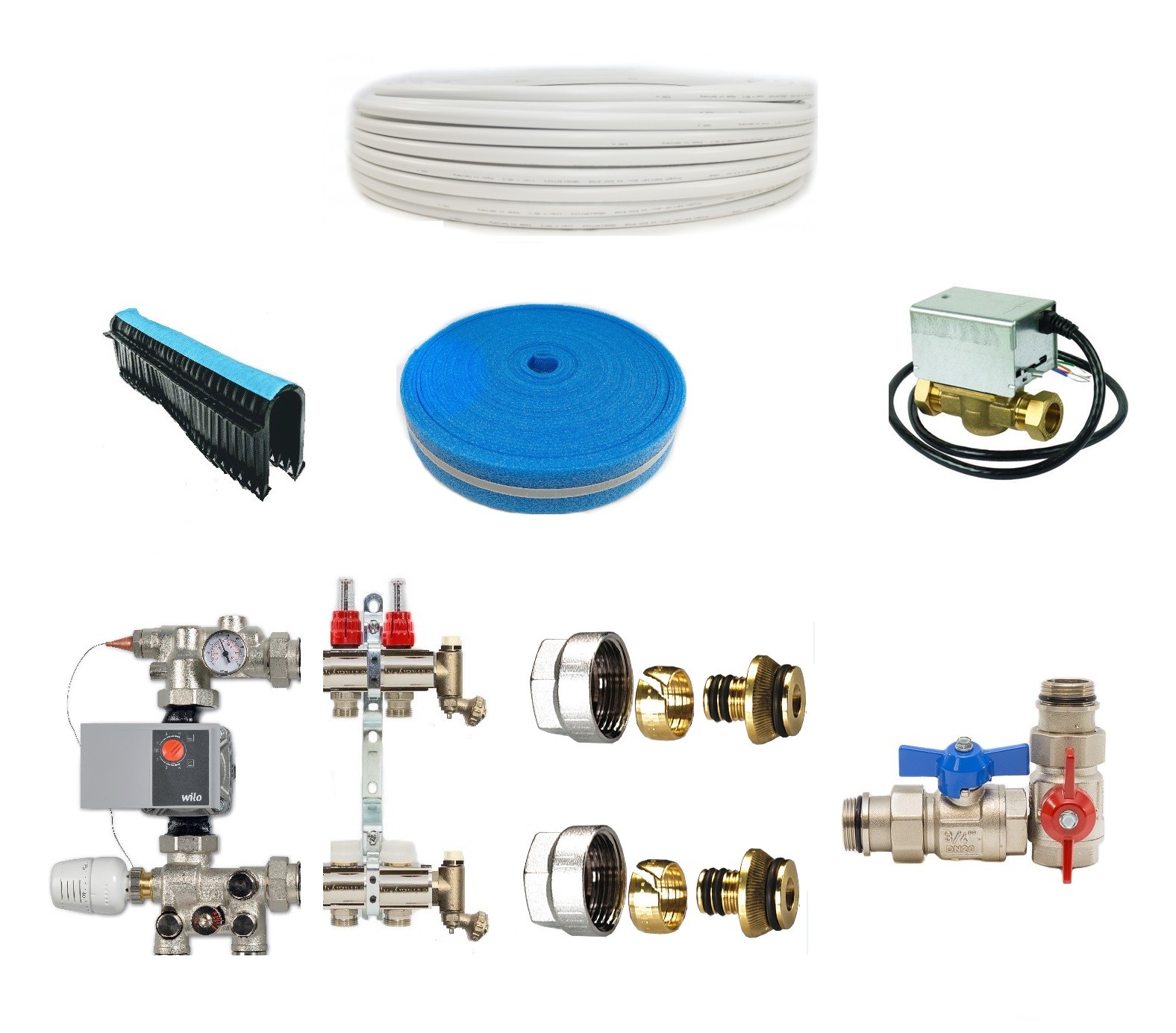

If you have multiple zones in your underfloor heating project, then the Warmus multi-area kit is your go-to solution. Designed to give you everything you need for an efficient and hassle-free installation of underfloor heating into any building.
Offering one of the largest range of kit sizes from 30 m2 – 200m2, with pipe spacings of 200 centres you can also choose from a variety of control options to complete your project.
Simply choose your kit size and select the required thermostat and quantity. If you don’t need a thermostat, then no worries, we’ve made it easy to build your kit to your requirements.
Kit Size | Manifold | Control Pack & Pump | Ball Valves | Compression Adaptors | Pipe Length | Pipe Clips | Wiring Box | Edging Strip | Actuators |
30m² | 2 Port | ✓ | ✓ | ✓ | 2 x 75m | 600 | ✓ | 50m | 2 |
40m² | 2 Port | ✓ | ✓ | ✓ | 2 x 100m | 600 | ✓ | 50m | 2 |
50m² | 3 Port | ✓ | ✓ | ✓ | 2 x 75m - 1 x 100m | 600 | ✓ | 50m | 3 |
60m² | 3 Port | ✓ | ✓ | ✓ | 3 x 100m | 900 | ✓ | 75m | 3 |
80m² | 4 Port | ✓ | ✓ | ✓ | 2 x 200m | 900 | ✓ | 100m | 4 |
100m² | 5 Port | ✓ | ✓ | ✓ | 1 x 500m | 1200 | ✓ | 100m | 5 |
120m² | 6 Port | ✓ | ✓ | ✓ | 3 x 200m | 1500 | ✓ | 150m | 6 |
140m² | 7 Port | ✓ | ✓ | ✓ | 1 x 100m - 1 x 500m | 1500 | ✓ | 150m | 7 |
160m² | 8 Port | ✓ | ✓ | ✓ | 1 x 100m - 1 x 200m - 1 x 500m | 1500 | ✓ | 150m | 8 |
180m² | 9 Port | ✓ | ✓ | ✓ | 2 x 200m - 1 x 500m | 2100 | ✓ | 200m | 9 |
200m² | 10 Port | ✓ | ✓ | ✓ | 2 x 500m | 2100 | ✓ | 200m | 10 |
Kit Size | Max Heat Output m2* | Max Heat Output kW* | Pipe Centres | Zones |
30m² | 100 | 2.1 | 200 | 2 |
40m² | 100 | 2.8 | 200 | 2 |
50m² | 100 | 3.5 | 200 | 3 |
60m² | 100 | 4.2 | 200 | 3 |
80m² | 100 | 5.6 | 200 | 4 |
100m² | 100 | 7 | 200 | 5 |
120m² | 100 | 8.4 | 200 | 6 |
140m² | 100 | 9.8 | 200 | 7 |
160m² | 100 | 11.2 | 200 | 8 |
180m² | 100 | 12.6 | 200 | 9 |
200m² | 100 | 14 | 200 | 10 |
