IVAR 2-12 Port Brass Underfloor Heating Manifold

Description

IVAR 2-12 Port Brass Underfloor Heating Manifold

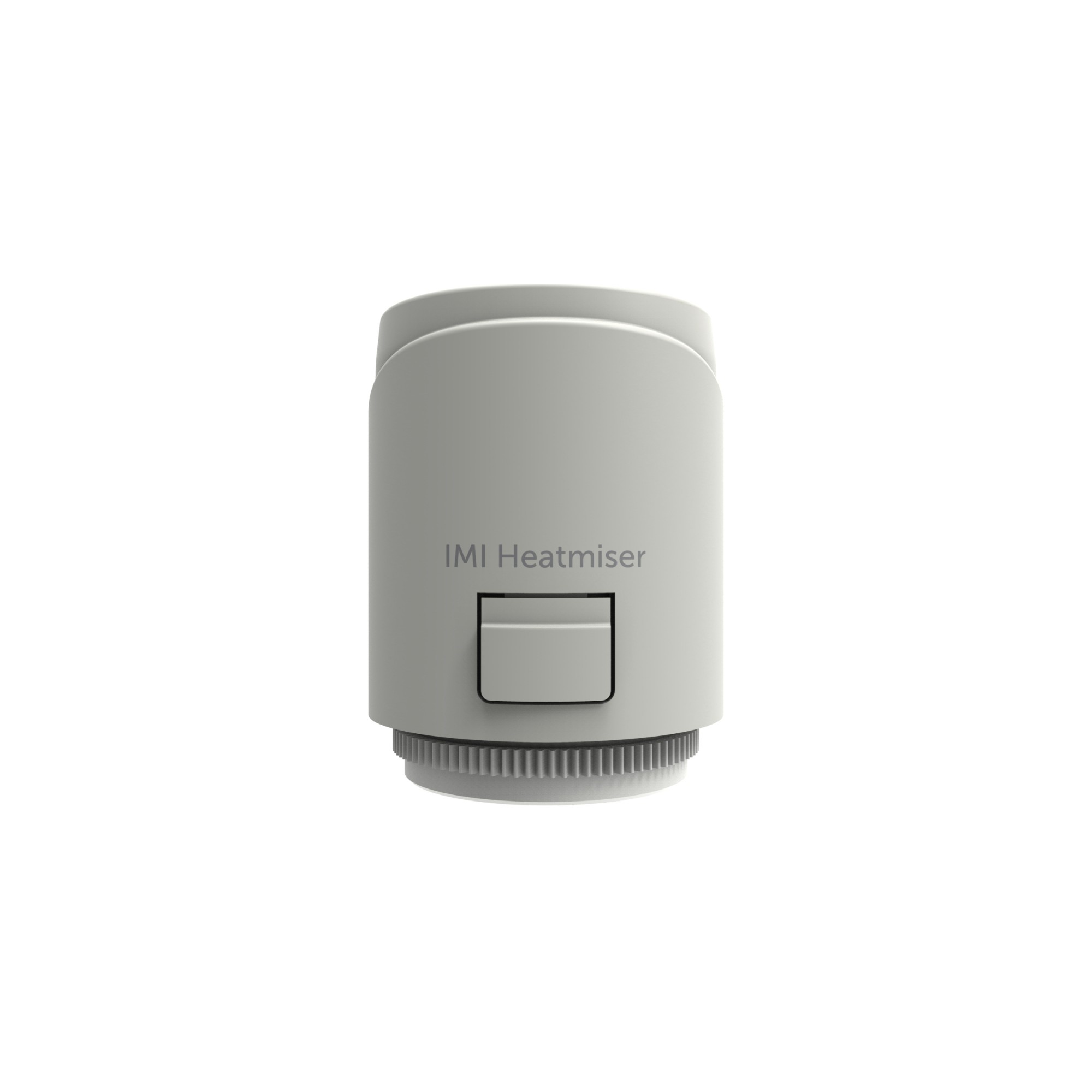

Central to any underfloor heating kit is the IVAR underfloor heating Manifold. An underfloor heating manifold is a compact multi-port arrangement, which usually includes a series of thermostatically controlled Actuators, temperature gauges, a mixing valve, and a circulation pump. Balancing between circuits is achieved using the flow meters.

The IVAR underfloor heating manifold is used to control the flow of water through the underfloor heating system. Every single pipe in the system will be connected to the manifold thus making it possible to control the flow of the system in each room if required

Our underfloor heating Manifold is available with 2-12 ports and comes with a manual air vent. Spares are also available ranging from pin valves to flow meters on our IVAR Manifold Spares page.


Manifold details:

• Max operating temperature: 90oC
• Max operating pressure: 10 bar Flow Meter
• Adjustment range: 0÷5 l/min
• Precision: _ 10%
• Shutter: PA MXD6
• Seal: peroxide EPDM
• Lock ring: PPO and PS blend
• Indicator: PA 12
• Spindle: PSU
• Spyglass: transparent PA 12
• Cover: ABS/Materials
• Brass parts: CW617N
• Seal parts: peroxide EPDM
• Protecting caps: ABS Flow Meter
• Body: PPA

Technical Specifications


Manifold
Length - Depth - Height
Manufactuers Code

2 Port UFH Manifold

172mm - 100mm - 330mm

500082CN

3 Port UFH Manifold

222mm- 100mm - 330mm

500083CN

4 Port UFH Manifold

272mm - 100mm - 330mm

500084CN

5 Port UFH Manifold

322mm - 100mm - 330mm

500085CN

6 Port UFH Manifold

372mm - 100mm - 330mm

500086CN

7 Port UFH Manifold

422mm - 100mm - 330mm

500087CN
8 Port UFH Manifold

472mm - 100mm - 330mm

500088CN

9 Port UFH Manifold

522mm - 100mm - 330mm

500089CN

10 Port UFH Manifold

572mm - 100mm - 330mm

500090CN

11 Port UHF Manifold

622mm - 100mm - 330mm

500091CN

12 Port UFH Manifold

672mm - 100mm - 330mm

500092CN
Ball/Isolation Valves are not included.
