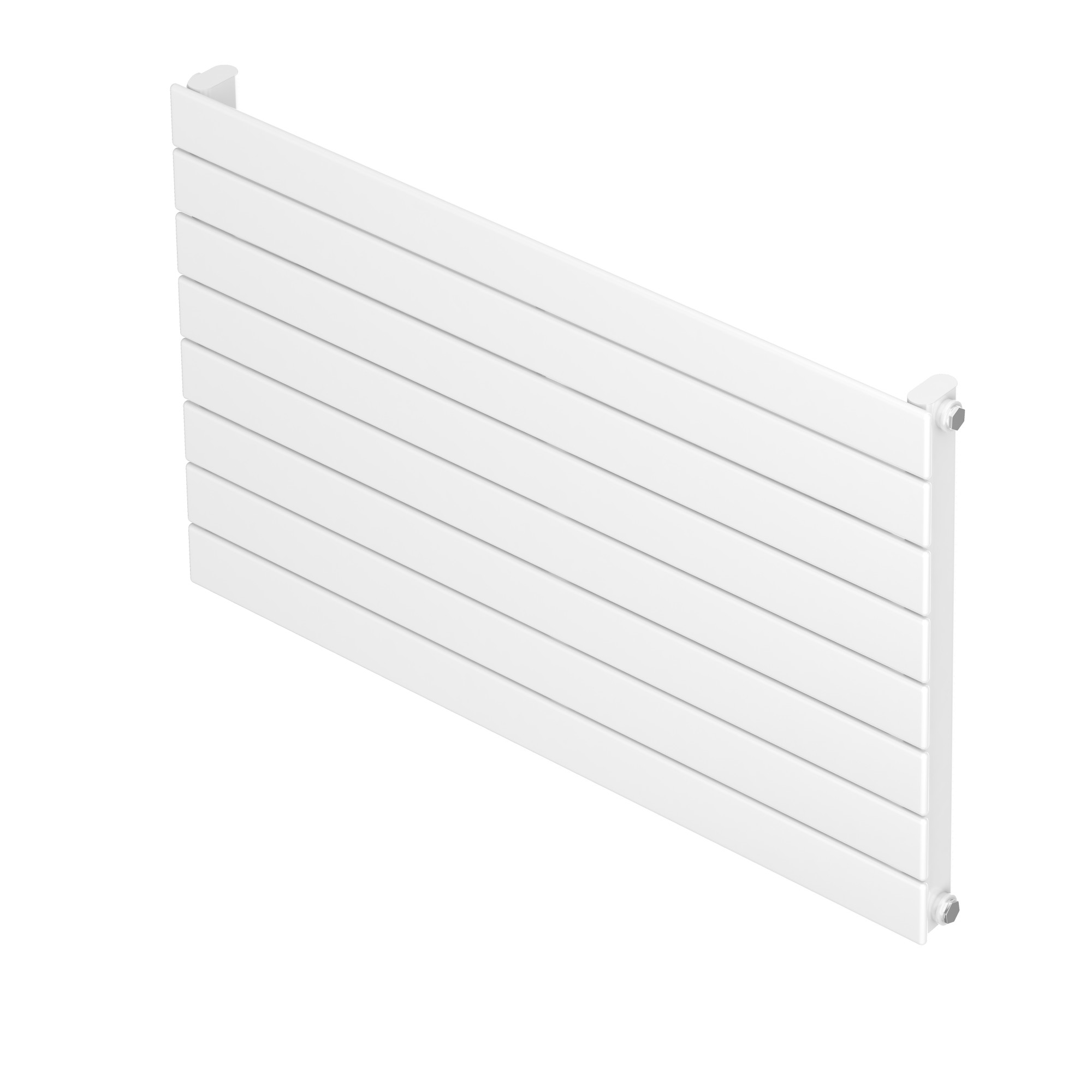

Instantly upgrade any space with the Ignis Core, a stylish, high-performance flat tube radiator. Its sleek horizontal profile and pristine white powder coating are the perfect combination for achieving a striking, contemporary look.
Available in a wide variety of sizes with options for both single and double panels, the Core provides a versatile and efficient solution for any space. Whether you’re heating a snug hallway or a large, open-plan living room, you’ll find the ideal fit for your heating needs and design vision.
Heat output options: Available in single or double panel designs for customised performance
Premium construction: Made from high-quality steel, meeting ISO9001 manufacturing standards
Finish: Durable white epoxy polyester powder finish (RAL 9016) for a brighter, whiter finish
Sizes: 578mm height and 9 lengths from 500mm to 2000mm
Fully tested to BS EN 442 standards
Maximum operating temperature: 4 bar
Test pressure: 5.2 bar
| Technical Detail | Specification | Technical Detail | Specification |
|---|---|---|---|
| Fully tested to BS EN 442 standards | Y | Maximum operating pressure | 4 bar |
| Test pressure | 5.2 bar | Sizes | 578mm height and 9 lengths from 500mm to 2000mm |
| UFS Code | Orientation | Type | Height (mm) | Length (mm) | BTU Heat Output @Δt50 | Watts @Δt50 | BTU Heat Output @Δt30 | Watts @Δt30 |
|---|---|---|---|---|---|---|---|---|
| IGCH11578500W | Horizontal | 11 | 578 | 500 | 1566 | 549 | 826 | 242 |
| IGCH11578600W | Horizontal | 11 | 578 | 600 | 1880 | 551 | 989 | 290 |
| IGCH11578600W | Horizontal | 11 | 578 | 800 | 2504 | 734 | 1320 | 387 |
| IGCH115781000W | Horizontal | 11 | 578 | 1000 | 3132 | 918 | 1651 | 484 |
| IGCH115781200W | Horizontal | 11 | 578 | 1200 | 3760 | 1102 | 1979 | 580 |
| IGCH115781400W | Horizontal | 11 | 578 | 1400 | 4384 | 1285 | 2310 | 677 |
| IGCH115781600W | Horizontal | 11 | 578 | 1600 | 5012 | 1469 | 2641 | 774 |
| IGCH118751800W | Horizontal | 11 | 578 | 1800 | 5637 | 1652 | 2968 | 870 |
| IGCH22578600W | Horizontal | 22 | 578 | 600 | 3699 | 1084 | 1914 | 561 |
| IGCH22578800W | Horizontal | 22 | 578 | 800 | 4934 | 1446 | 2552 | 748 |
| IGCH225781000W | Horizontal | 22 | 578 | 1000 | 6165 | 1807 | 3190 | 935 |
| IGCH225781200W | Horizontal | 22 | 578 | 1200 | 7397 | 2168 | 3825 | 1121 |
| IGCH225781400W | Horizontal | 22 | 578 | 1400 | 8632 | 2530 | 4463 | 1308 |
| IGCH225781600W | Horizontal | 22 | 578 | 1600 | 9864 | 2891 | 5101 | 1495 |
| IGCH225781800W | Horizontal | 22 | 578 | 1800 | 11099 | 3256 | 5739 | 1682 |
