DEVIcomfort Electric Underfloor Heating Mat 100W per m² - Timber Floor

DEVIcomfort Electric Underfloor Heating Mat Concrete Floor

Description

DEVIcomfort Electric Underfloor Heating Mat 100W per m² - Timber Floor

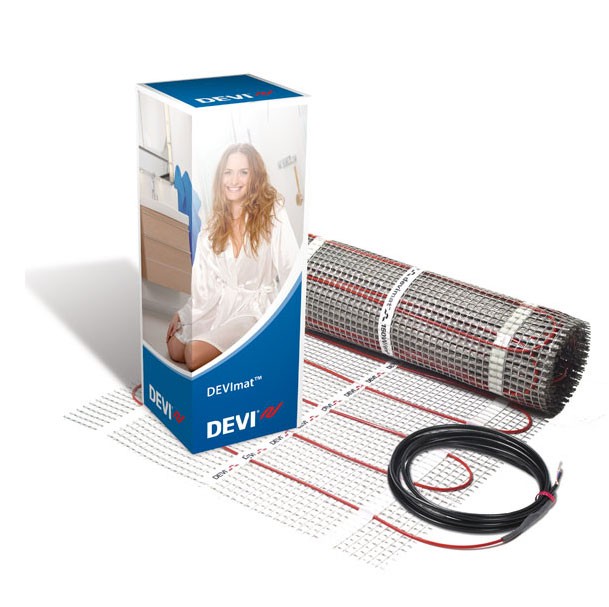

The DEVIcomfort™ electric underfloor heating mat is a strong self-adhesive all-in-one mat which ensures a quick and easy installation directly on the existing floor. The low installation height is perfect for renovations. The DEVIcomfort™ may be covered with a self-levelling floor screed onto which the top floor can be laid in the usual way. The DEVIcomfort™ system consists of a thin twin conductor electric heating cable only 4 mm thick attached to an open weave fibreglass mesh, self-adhesive on the entire surface of the mat.


Benefits:Easy to installLow install height100% screened20-year warranty


Technical Specifications

Operation voltage

220V - 240V

Outer sheath

PVC
Output

150 W/m²

Cold Lead
4m DTWB 2 X 1.0 MM2

Max. ambient temperature

65° C

Min. installation temperature

-5° C

Cable thickness

4 mm

Bending radius

6 x Ø

Deformation strength

600N

IP Class IPX7

IPX7

Pulling strength

120N Thermostat Included No

Conductor insulation

FEP Warranty 20 Years
