Warmus Screed Single Area Underfloor Heating Kit

Image 1 of Warmus Screed Single Area Underfloor Heating Kit

Description

Warmus Screed Single Area Underfloor Heating Kit

Our underfloor heating kits have been designed to give you everything you need for a fast and hassle-free installation of underfloor heating into any building.

Our comprehensive kit options, ranging from 10 m² – 100m², with pipe spacings of 200 centres are available with a choice of control options to suit your needs.

Simply choose your kit size and select the required thermostat and quantity. If you don’t need a thermostat, then no worries, we’ve made it easy to build your kit to your requirements.

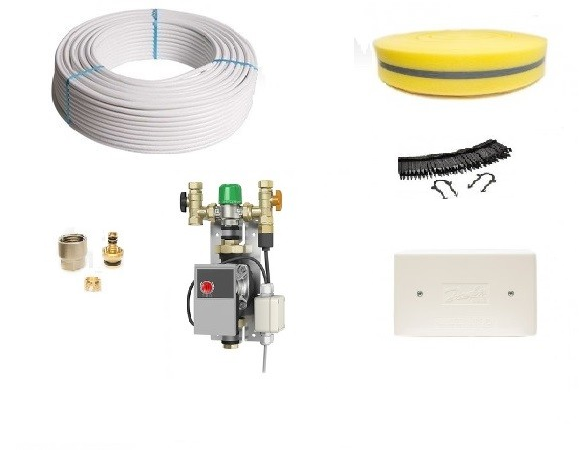

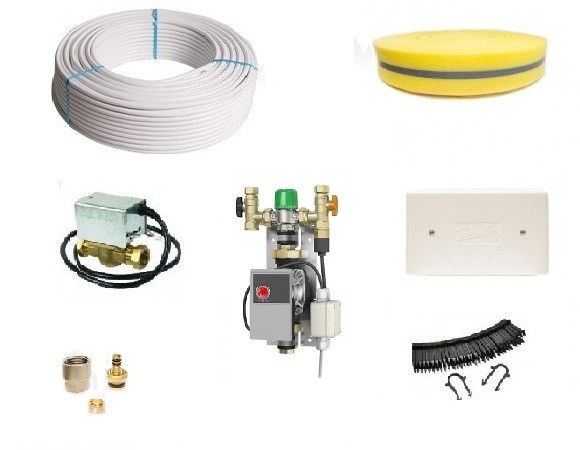

What's in your Warmus Screed Single Area Underfloor Heating Kit


Kit Size
Manifold Control Pack & Pump
Ball Valves Compression Adaptors Pipe Coil Sizes
Pipe Clips Edging Strip
10m²

1 x 50m
300
25m
12m²

1 x 75m
300
25m
15m²

1 x 75m 300 25m
17m²

1 x 100m
300
25m
20m²

1 x 100m
300
25m
22m²

1 x 120m
300
25m
25m² 2 Port
1 x 50m - 1 x 75m
300
25m
27m² 2 Port
2 x 75m
300
50m
30m² 2 Port
2 x 75m 300
50m
35m² 2 Port
1 x 75m - 1 x 100m
600
50m
40m² 2 Port
2x 100m
600
50m
45m² 2 Port
2x 120m
600
50m
50m² 3 Port
2 x 75m - 1 x 100m 600
50m
60m² 3 Port
3 x 100m
900
75m
70m² 4 Port
2 x 75m - 2 x 100m 900
75m
80m² 4 Port
4 x 100m
900
100m
90m² 5 Port
2 x 75m - 3x 100m 1200
100m
100m² 5 Port
5 x 100m
1200
100m

Technical Specifications

Kit Size Max Heat Output w/m²* Max Heat Output kW* Pipe Centres (mm)
Zones
10m² 100
1
200
1
12m² 100
1.2
200
1
15m² 100
1.5
200
1
17m² 100
1.7
200
1
20m² 100
2
200
1
22m² 100
2.2
200
1
25m² 100
2.5
200
1
27m² 100
2.7
200
1
30m² 100
3
200
1
35m² 100
3.5
200
1
40m² 100
4
200
1
45m² 100
4.5
200
1
50m² 100
5
200
1
60m² 100
6
200
1
70m² 100
7
200
1
80m² 100
8
200
1
90m² 100
9
200
1
100m² 100
10
200
1
*All heat output figures are an estimate. Final figures will vary.
