DEVIlink CC Wireless Controller

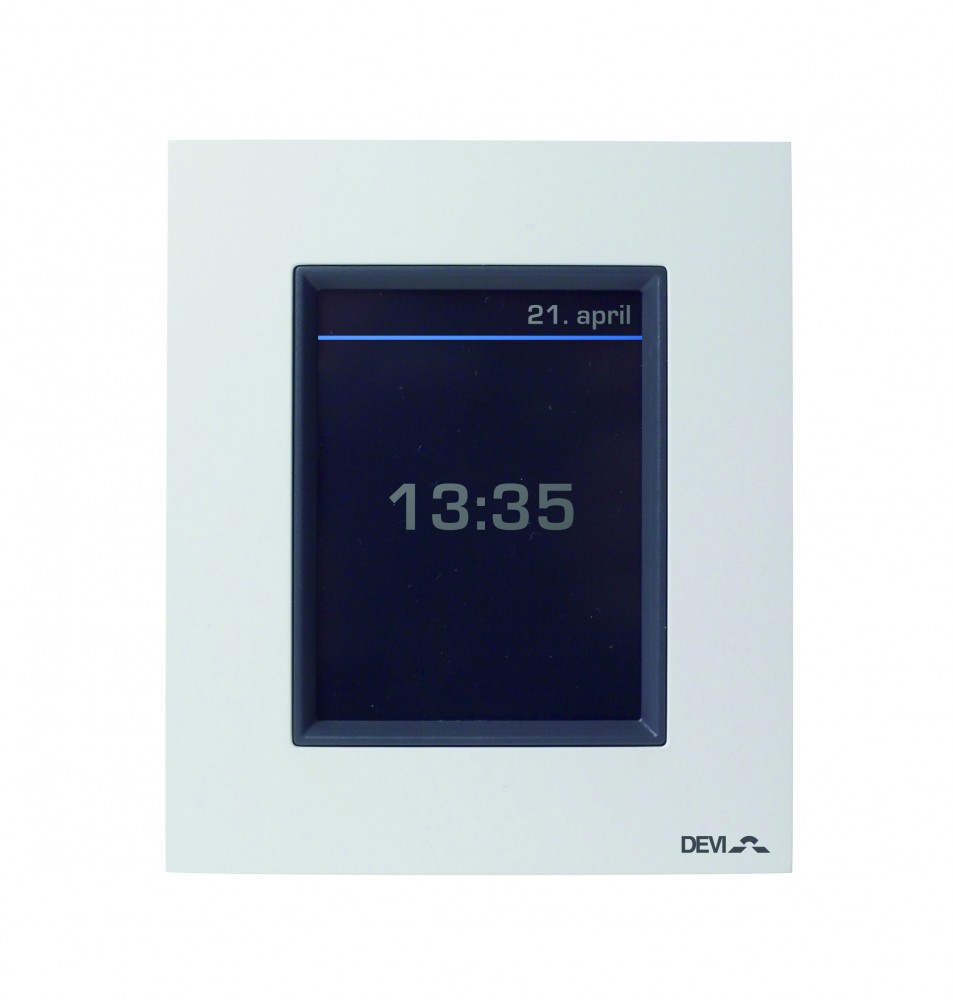

Image 1 of DEVIlink CC Wireless Controller
Description

DEVIlink CC

The DEVIlink CC is a central controller with colour touch screen enables control of the whole system and communicates via wireless with all other DEVIlink units throughout a building covering more than 5 rooms. Includes either an in-wall power supply PSU or a net power supply NSU.

The idea of the DEVIlink system is to link together your heating system and control it from one central point. DEVIlink system is the heating control system of the future, it builds on a scalable platform when new requirements arise the system is able to expand with its needs.

To be used with the Devi FT and Devi RS only.

Technical Specifications


Operation voltage 15 VDC +/-10%

15 VDC +/-10%

Standby Power Consumption

< 400 mW

Screen

3,5 TFT colour w. touch

Ambient temperature

-10 to +35°C

Transmission frequency

868,42 MHz

Transmission range in normal buildings

Up to 30 m

Max. number of repeaters in a chain

3

Transmission power

Max. 1 mW

IP Class

21

Dimension (H/W/D)

125 mm × 107 mm × 25 mm
